THT-Standard-Jumper Applications

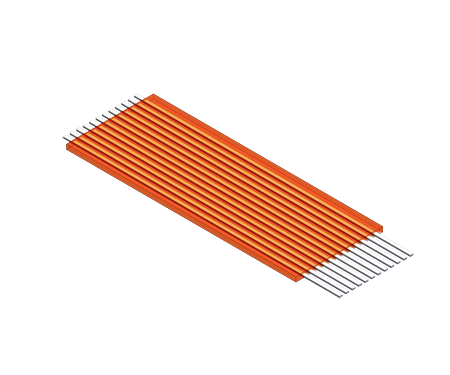

THT-STANDARD-JUMPER

1: Hot bar soldering contacts -

    crimped 90°

2: Hot bar soldering contacts -

    crimped 90°


3: Hot bar soldering contacts -

    straight pins

4: Straight pins - straight pins


5: Straight pins - crimped 60°

The THT-Standard-Jumper can be delivered with different pins on both left and right side.
