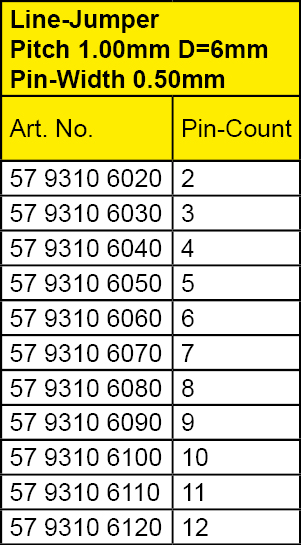

LINE-JUMPER Pitch 1.00mm D=6mm
Line-Jumper Pitch 1.00mm Distance=6mm | ||||
---|---|---|---|---|
Art. No. | Pitch | Pin-Width | Pin-Count | Dimensions |
57 9310 6020 | 1.00mm | 0.50mm | 2 | 8.40mm x 2.00mm |
57 9310 6030 | 1.00mm | 0.50mm | 3 | 8.40mm x 3.00mm |
57 9310 6040 | 1.00mm | 0.50mm | 4 | 8.40mm x 4.00mm |
57 9310 6050 | 1.00mm | 0.50mm | 5 | 8.40mm x 5.00mm |
57 9310 6060 | 1.00mm | 0.50mm | 6 | 8.40mm x 6.00mm |
57 9310 6070 | 1.00mm | 0.50mm | 7 | 8.40mm x 7.00mm |
57 9310 6080 | 1.00mm | 0.50mm | 8 | 8.40mm x 8.00mm |
57 9310 6090 | 1.00mm | 0.50mm | 9 | 8.40mm x 9.00mm |
57 9310 6100 | 1.00mm | 0.50mm | 10 | 8.40mm x 10.00mm |
57 9310 6110 | 1.00mm | 0.50mm | 11 | 8.40mm x 11.00mm |
57 9310 6120 | 1.00mm | 0.50mm | 12 | 8.40mm x 12.00mm |
