Bridge-Jumper P0.5 L10

BRIDGE-JUMPER Pitch 0.50mm L=10mm

Insert Image

Bridge_Jumper_P0.5_L10

Bridge-Jumper Pitch 0.50mm L=10mm

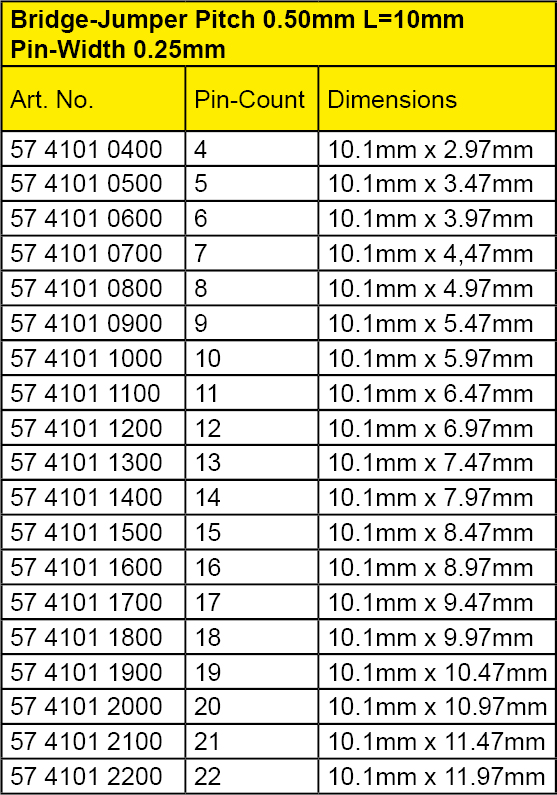

Art. No.	Pitch	Pin-Width	Pin-Count	Dimensions
57 4101 0400	0.50mm	0.25mm	4	10.10mm x 2.97mm
57 4101 0500	0.50mm	0.25mm	5	10.10mm x 3.47mm
57 4101 0600	0.50mm	0.25mm	6	10.10mm x 3.97mm
57 4101 0700	0.50mm	0.25mm	7	10.10mm x 4.47mm
57 4101 0800	0.50mm	0.25mm	8	10.10mm x 4.97mm
57 4101 0900	0.50mm	0.25mm	9	10.10mm x 5.47mm
57 4101 1000	0.50mm	0.25mm	10	10.10mm x 5.97mm
57 4101 1100	0.50mm	0.25mm	11	10.10mm x 6.47mm
57 4101 1200	0.50mm	0.25mm	12	10.10mm x 6.97mm
57 4101 1300	0.50mm	0.25mm	13	10.10mm x 7.47mm
57 4101 1400	0.50mm	0.25mm	14	10.10mm x 7.97mm
57 4101 1500	0.50mm	0.25mm	15	10.10mm x 8.47mm
57 4101 1600	0.50mm	0.25mm	16	10.10mm x 8.97mm
57 4101 1700	0.50mm	0.25mm	17	10.10mm x 9.47mm
57 4101 1800	0.50mm	0,25mm	18	10.10mm x 9.97mm
57 4101 1900	0.50mm	0.25mm	19	10.10mm x 10.47mm
57 4101 2000	0.50mm	0.25mm	20	10.10mm x 10.97mm
57 4101 2100	0.50mm	0.25mm	21	10.10mm x 11.47mm
57 4101 2200	0.50mm	0.25mm	22	10.10mm x 11.97mm
