Line-Jumper P1 Distance 9mm

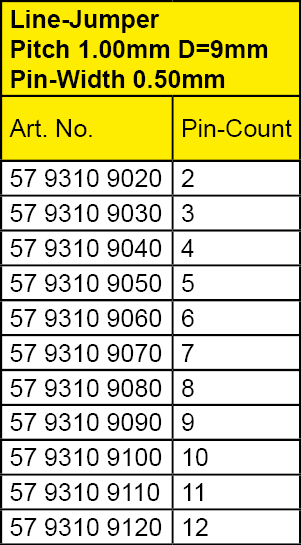

LINE-JUMPER Pitch 1.00mm D=9mm

Line-Jumper Pitch 1.00mm Distance=11mm

Art. No.

Pitch

Pin-Width

Pin-Count

Dimensions

57 9310 9020

1.00mm

0.50mm

2

11.40mm x 2.00mm

57 9310 9030

1.00mm

0.50mm

3

11.40mm x 3.00mm

57 9310 9040

1.00mm

0.50mm

4

11.40mm x 4.00mm

57 9310 9050

1.00mm

0.50mm

5

11.40mm x 5.00mm

57 9310 9060

1.00mm

0.50mm

6

11.40mm x 6.00mm

57 9310 9070

1.00mm

0.50mm

7

11.40mm x 7.00mm

57 9310 9080

1.00mm

0.50mm

8

11.40mm x 8.00mm

57 9310 9090

1.00mm

0.50mm

9

11.40mm x 9.00mm

57 9310 9100

1.00mm

0.50mm

10

11.40mm x 10.00mm

57 9310 9110

1.00mm

0.50mm

11

11.40mm x 11.00mm

57 9310 9120

1.00mm

0.50mm

12

11.40mm x 12.00mm
