STICK-JUMPER

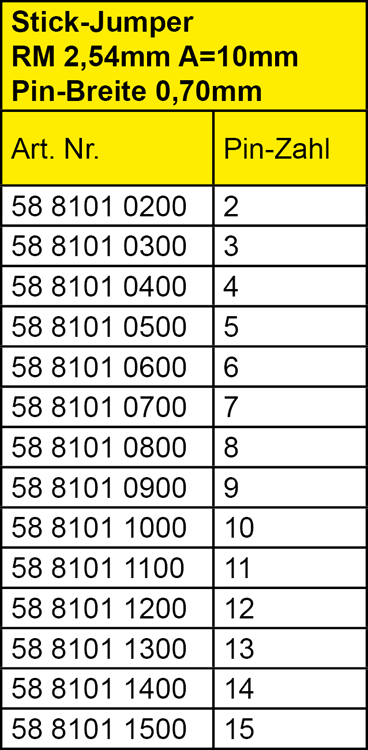

Stick-Jumper Abstand=10mm | ||||
---|---|---|---|---|
Art. Nr. | Raster | Pin-Breite | Pin-Zahl | Abstandsmaß |
58 8101 0200 | 2,54mm | 0,70mm | 2 | 10,00mm |
58 8101 0300 | 2,54mm | 0,70mm | 3 | 10,00mm |
58 8101 0400 | 2,54mm | 0,70mm | 4 | 10,00mm |
58 8101 0500 | 2,54mm | 0,70mm | 5 | 10,00mm |
58 8101 0600 | 2,54mm | 0,70mm | 6 | 10,00mm |
58 8101 0700 | 2,54mm | 0,70mm | 7 | 10,00mm |
58 8101 0800 | 2,54mm | 0,70mm | 8 | 10,00mm |
58 8101 0900 | 2,54mm | 0,70mm | 9 | 10,00mm |
58 8101 1000 | 2,54mm | 0,70mm | 10 | 10,00mm |
58 8101 1100 | 2,54mm | 0,70mm | 11 | 10,00mm |
58 8101 1200 | 2,54mm | 0,70mm | 12 | 10,00mm |
58 8101 1300 | 2,54mm | 0,70mm | 13 | 10,00mm |
58 8101 1400 | 2,54mm | 0,70mm | 14 | 10,00mm |
58 8101 1500 | 2,54mm | 0,70mm | 15 | 10,00mm |
Stick-Jumper Abstand=20mm | ||||
---|---|---|---|---|
Art. Nr. | Raster | Pin-Breite | Pin-Zahl | Abstandsmaß |
58 8201 0200 | 2,54mm | 0,70mm | 2 | 20,00mm |
58 8201 0300 | 2,54mm | 0,70mm | 3 | 20,00mm |
58 8201 0400 | 2,54mm | 0,70mm | 4 | 20,00mm |
58 8201 0500 | 2,54mm | 0,70mm | 5 | 20,00mm |
58 8201 0600 | 2,54mm | 0,70mm | 6 | 20,00mm |
58 8201 0700 | 2,54mm | 0,70mm | 7 | 20,00mm |
58 8201 0800 | 2,54mm | 0,70mm | 8 | 20,00mm |
58 8201 0900 | 2,54mm | 0,70mm | 9 | 20,00mm |
58 8201 1000 | 2,54mm | 0,70mm | 10 | 20,00mm |
58 8201 1100 | 2,54mm | 0,70mm | 11 | 20,00mm |
58 8201 1200 | 2,54mm | 0,70mm | 12 | 20,00mm |
58 8201 1300 | 2,54mm | 0,70mm | 13 | 20,00mm |
58 8201 1400 | 2,54mm | 0,70mm | 14 | 20,00mm |
58 8201 1500 | 2,54mm | 0,70mm | 15 | 20,00mm |
Stick-Jumper Abstand=30mm | ||||
---|---|---|---|---|
Art. Nr. | Raster | Pin-Breite | Pin-Zahl | Abstandsmaß |
58 8301 0200 | 2,54mm | 0,70mm | 2 | 30,00mm |
58 8301 0300 | 2,54mm | 0,70mm | 3 | 30,00mm |
58 8301 0400 | 2,54mm | 0,70mm | 4 | 30,00mm |
58 8301 0500 | 2,54mm | 0,70mm | 5 | 30,00mm |
58 8301 0600 | 2,54mm | 0,70mm | 6 | 30,00mm |
58 8301 0700 | 2,54mm | 0,70mm | 7 | 30,00mm |
58 8301 0800 | 2,54mm | 0,70mm | 8 | 30,00mm |
58 8301 0900 | 2,54mm | 0,70mm | 9 | 30,00mm |
58 8301 1000 | 2,54mm | 0,70mm | 10 | 30,00mm |
58 8301 1100 | 2,54mm | 0,70mm | 11 | 30,00mm |
58 8301 1200 | 2,54mm | 0,70mm | 12 | 30,00mm |
58 8301 1300 | 2,54mm | 0,70mm | 13 | 30,00mm |
58 8301 1400 | 2,54mm | 0,70mm | 14 | 30,00mm |
58 8301 1500 | 2,54mm | 0,70mm | 15 | 30,00mm |
