Länge 10mm

BRIDGE-JUMPER RM 0,50mm L=10mm

Insert Image

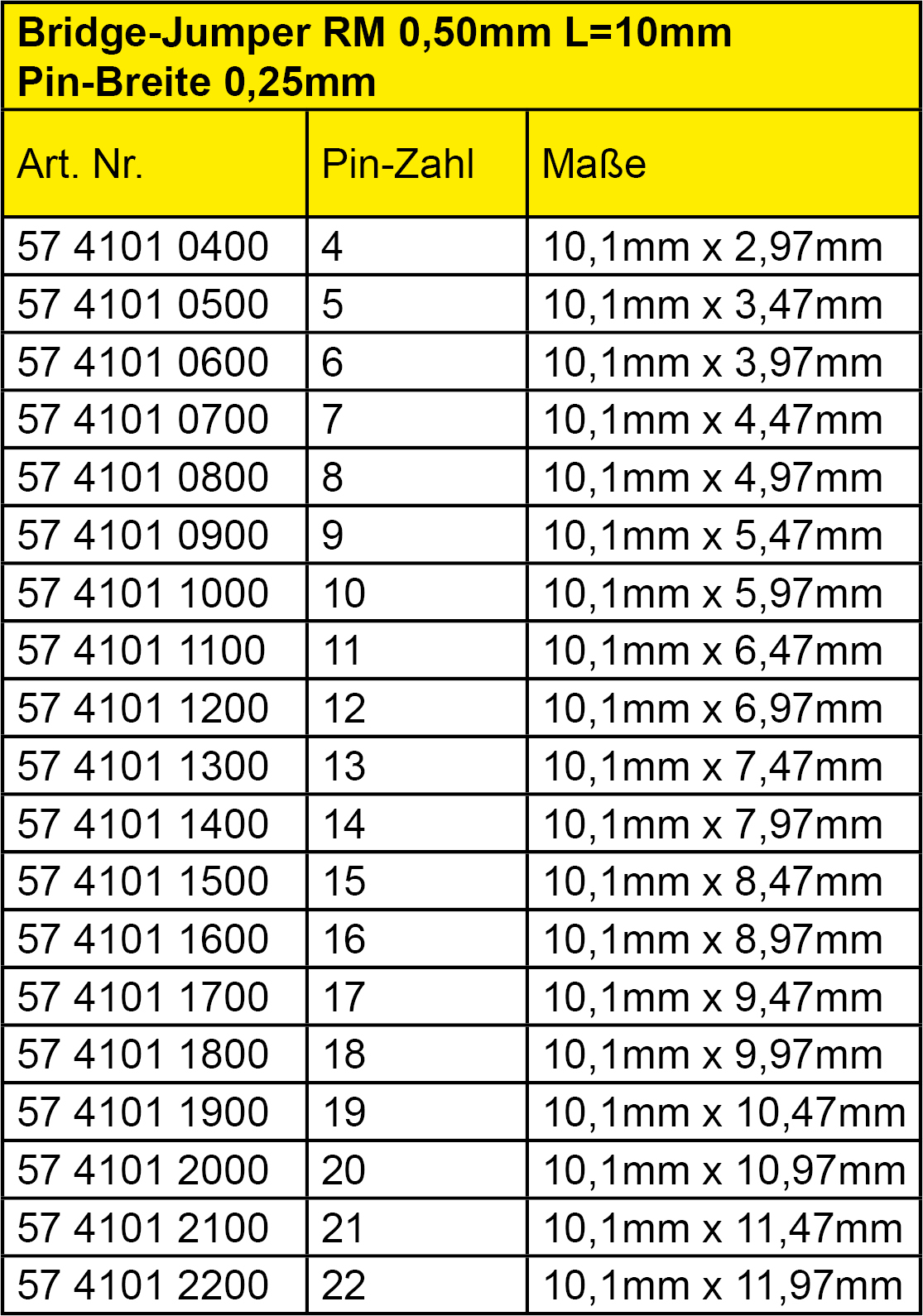

Bridge-Jumper RM 0,50mm L=10mm
Art. Nr.	Raster	Pin-Breite	Pin-Zahl	Maße
57 4101 0400	0,50mm	0,25mm	4	10,10mm x 2,97mm
57 4101 0500	0,50mm	0,25mm	5	10,10mm x 3,47mm
57 4101 0600	0,50mm	0,25mm	6	10,10mm x 3,97mm
57 4101 0700	0,50mm	0,25mm	7	10,10mm x 4,47mm
57 4101 0800	0,50mm	0,25mm	8	10,10mm x 4,97mm
57 4101 0900	0,50mm	0,25mm	9	10,10mm x 5,47mm
57 4101 1000	0,50mm	0,25mm	10	10,10mm x 5,97mm
57 4101 1100	0,50mm	0,25mm	11	10,10mm x 6,47mm
57 4101 1200	0,50mm	0,25mm	12	10,10mm x 6,97mm
57 4101 1300	0,50mm	0,25mm	13	10,10mm x 7,47mm
57 4101 1400	0,50mm	0,25mm	14	10,10mm x 7,97mm
57 4101 1500	0,50mm	0,25mm	15	10,10mm x 8,47mm
57 4101 1600	0,50mm	0,25mm	16	10,10mm x 8,97mm
57 4101 1700	0,50mm	0,25mm	17	10,10mm x 9,47mm
57 4101 1800	0,50mm	0,25mm	18	10,10mm x 9,97mm
57 4101 1900	0,50mm	0,25mm	19	10,10mm x 10,47mm
57 4101 2000	0,50mm	0,25mm	20	10,10mm x 10,97mm
57 4101 2100	0,50mm	0,25mm	21	10,10mm x 11,47mm
57 4101 2200	0,50mm	0,25mm	22	10,10mm x 11,97mm
