BJ Short-Pins P093-L10

BRIDGE-JUMPER RM 0,93mm L=10mm

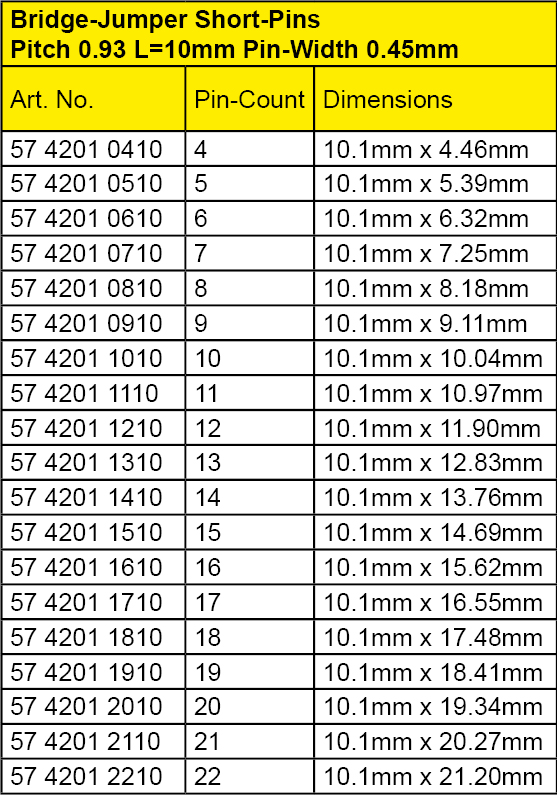

Bridge-Jumper Pitch 0.93mm L=10mm

Art. No.

Pitch

Pin-Width

Pin-Count

Dimensions

57 4201 0400

0.93mm

0.45mm

4

10.10mm x 4.46mm

57 4201 0500

0.93mm

0.45mm

5

10.10mm x 5.39mm

57 4201 0600

0.93mm

0.45mm

6

10.10mm x 6.32mm

57 4201 0700

0.93mm

0.45mm

7

10.10mm x 7.25mm

57 4201 0800

0.93mm

0.45mm

8

10.10mm x 8.18mm

57 4201 0900

0.93mm

0.45mm

9

10.10mm x 9.11mm

57 4201 1000

0.93mm

0.45mm

10

10.10mm x 10.04mm

57 4201 1100

0.93mm

0.45mm

11

10,10mm x 10.97mm

57 4201 1200

0.93mm

0.45mm

12

10.10mm x 11.90mm

57 4201 1300

0.93mm

0.45mm

13

10.10mm x 12.83mm

57 4201 1400

0.93mm

0.45mm

14

10.10mm x 13.76mm

57 4201 1500

0.93mm

0.45mm

15

10.10mm x 14.69mm

57 4201 1600

0.93mm

0.45mm

16

10.10mm x 15.62mm

57 4201 1700

0.93mm

0.45mm

17

10.10mm x 16.55mm

57 4201 1800

0.93mm

0.45mm

18

10.10mm x 17.48mm

57 4201 1900

0.93mm

0.45mm

19

10.10mm x 18.41mm

57 4201 2000

0.93mm

0.45mm

20

10.10mm x 19.34mm

57 4201 2100

0.93mm

0.45mm

21

10.10mm x 20.27mm

57 4201 2200

0.93mm

0.45mm

22

10.10mm x 21.20mm
